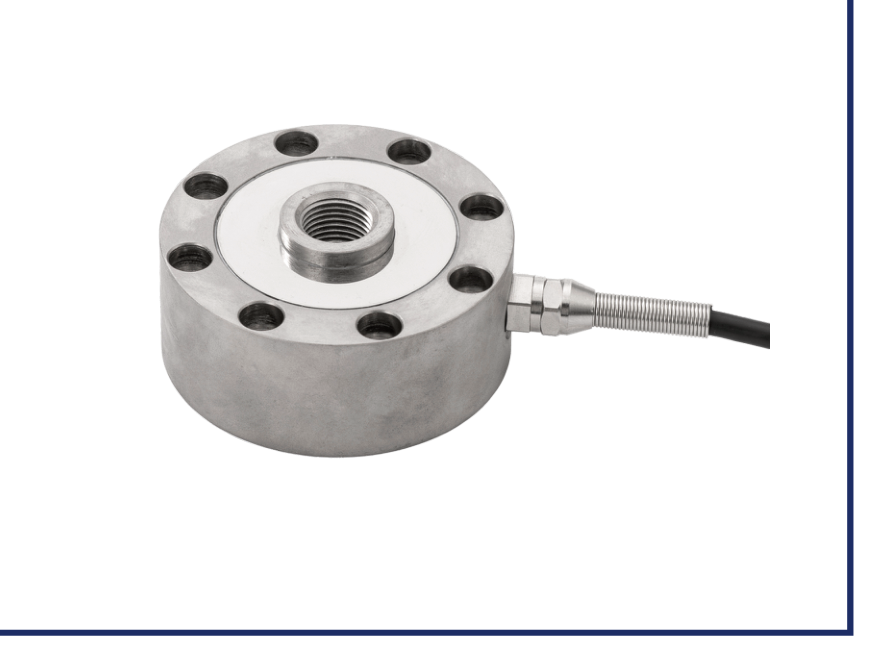

H101-13 Miniature Compression Force Sensor

The H101-13 Miniature Compression Force Sensor is an alloy-steel compression load cell for force measurement applications. Contact Bonida CNC for configuration and quotation. Technical Specifications Capacity: 20, 50, 100, 500, 1000 kg Rated output: 2.0 ±1% mV/V Zero balance: ±1% mV/V Creep: ≤0.03% F.S. Non-linearity: ≤0.05% F.S. Hysteresis: ≤0.05% F.S. Repeatability: ≤0.03% F.S. Input impedance: 780 ±20 Ω Output impedance: 700 ±5 Ω Temperature effect on sensitivity: 0.05% F.S./10°C Temperature effect on zero: 0.05% F.S./10°C Insulation resistance: ≥5000 MΩ/100 VDC Recommended excitation: 10 V Maximum excitation: 15 V Compensated temperature range: -10 to 40°C Operating temperature range: -20 to 70°C Safe overload: 150% F.S. Ultimate overload: 200% F.S. Cable: Ø6 × 5 m Material: Alloy steel
