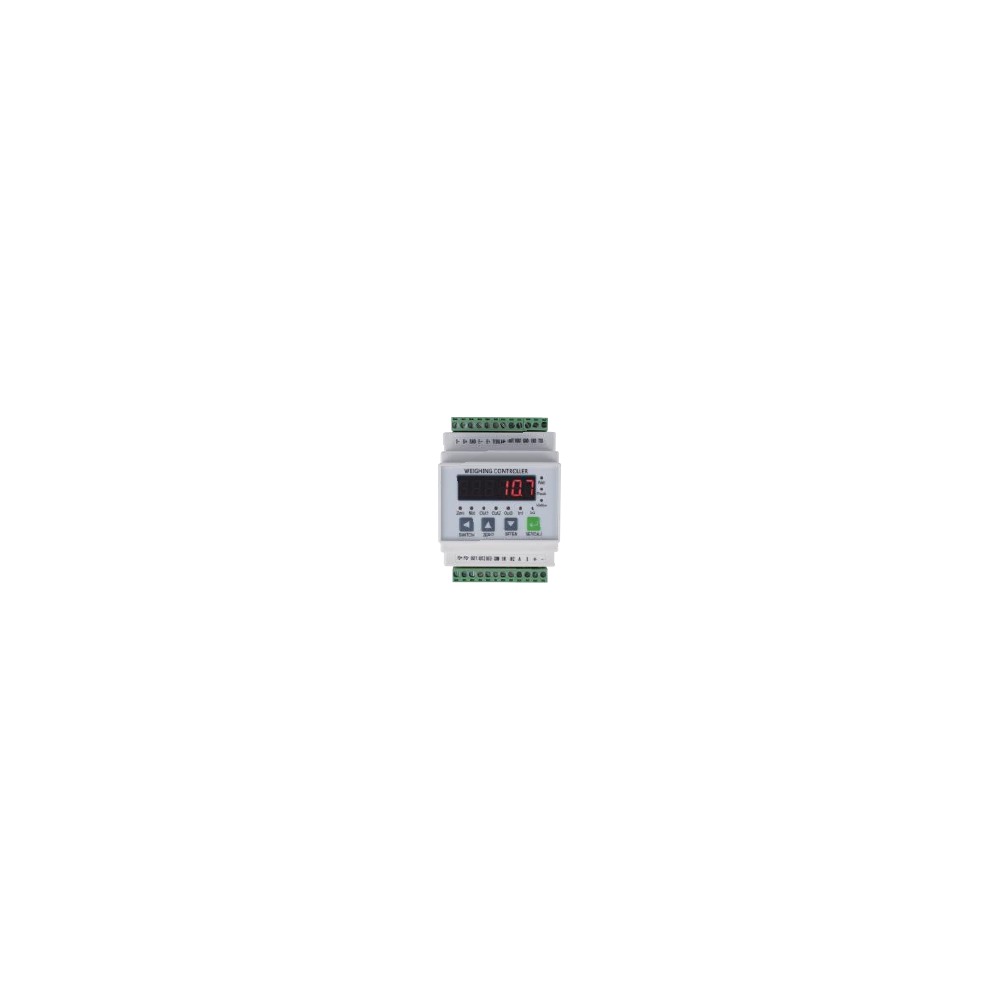

H20-01 Digital Weighing Controller

DIN-rail digital weighing controller for load-cell acquisition, display, communications and process control. Input range: 0.4-6 mV/V. Dual 6-digit LED display with display accuracy up to 1/10000. Sensor excitation: 5 VDC +/-2%, 100 mA, supporting up to six 350-ohm sensors. Supply: 10-30 VDC. 24-bit Delta-Sigma conversion with selectable output rates of 10, 40, 640 and 1280 samples/s. RS232 and RS485 communications support Modbus RTU and free protocol. Optional analog outputs include 0 to +/-10 V, 0-20 mA and 4-20 mA. Operating temperature: -30 to 60 C. Ingress protection: IP64. Available from Bonida for industrial integration and custom supply. Final communication, analog output and relay configuration should be confirmed during RFQ review.
