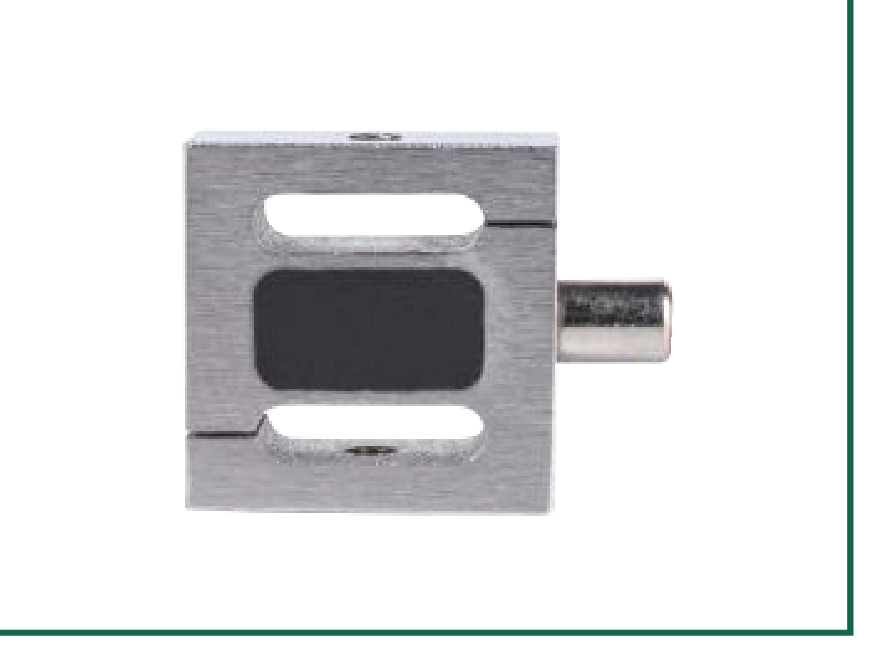

H301-01 S-Type Tension and Compression Load Cell

The H301-01 S-Type Tension and Compression Load Cell is a stainless-steel load cell for bidirectional force measurement. Contact Bonida CNC for configuration and quotation. Technical Specifications Capacity: 1, 2, 5, 10, 20 kg Rated output: 2.0 ±20% mV/V Zero balance: ±0.02% F.S. Creep: ≤0.1% F.S. Non-linearity: ≤0.1% F.S. Hysteresis: ≤0.1% F.S. Repeatability: ≤0.1% F.S. Input impedance: 650/350 ±5 Ω Output impedance: 650/350 ±5 Ω Temperature effect on sensitivity: 0.1% F.S./10°C Temperature effect on zero: 0.1% F.S./10°C Insulation resistance: ≥5000 MΩ/100 VDC Recommended excitation: 5 V Maximum excitation: 15 V Compensated temperature range: -10 to 60°C Operating temperature range: -20 to 80°C Safe overload: 150% F.S. Ultimate overload: 200% F.S. Cable: Ø2 × 3000 mm Material: Stainless steel
