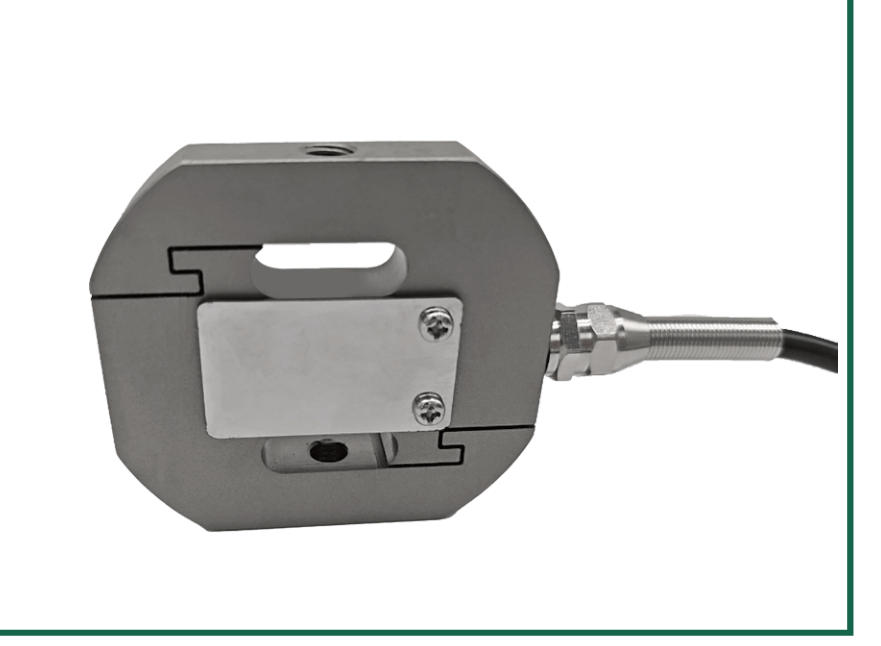

H301-05 S-Type Tension and Compression Load Cell

The Bonida H301-05 is an S-type tension and compression load cell for industrial force measurement and equipment integration. It uses an alloy-steel construction and is rated IP65. Verified technical specifications (source catalog page 18): • Capacity: 5, 10, 20, 50, 100 kg • Rated output: 2.0 ±0.05 mV/V • Zero balance: ±0.03 mV/V • Creep: 0.03% F.S. • Non-linearity: 0.03% F.S. • Hysteresis: 0.03% F.S. • Repeatability: 0.03% F.S. • Input impedance: 380 ±30 Ω • Output impedance: 350 ±10 Ω • Temperature effect on sensitivity: 0.05% F.S./10°C • Temperature effect on zero: 0.05% F.S./10°C • Insulation resistance: ≥2000 MΩ/50 VDC • Recommended excitation: 5–10 V • Maximum excitation: 15 V • Operating temperature range: -20 to 60°C • Safe overload: 150% F.S. • Ultimate overload: 300% F.S. • Cable: Ø5 × 3000 mm • Protection: IP65 • Material: Alloy steel Public pricing is not displayed. Please submit an RFQ to confirm the required capacity, quantity, integration details and lead time.
