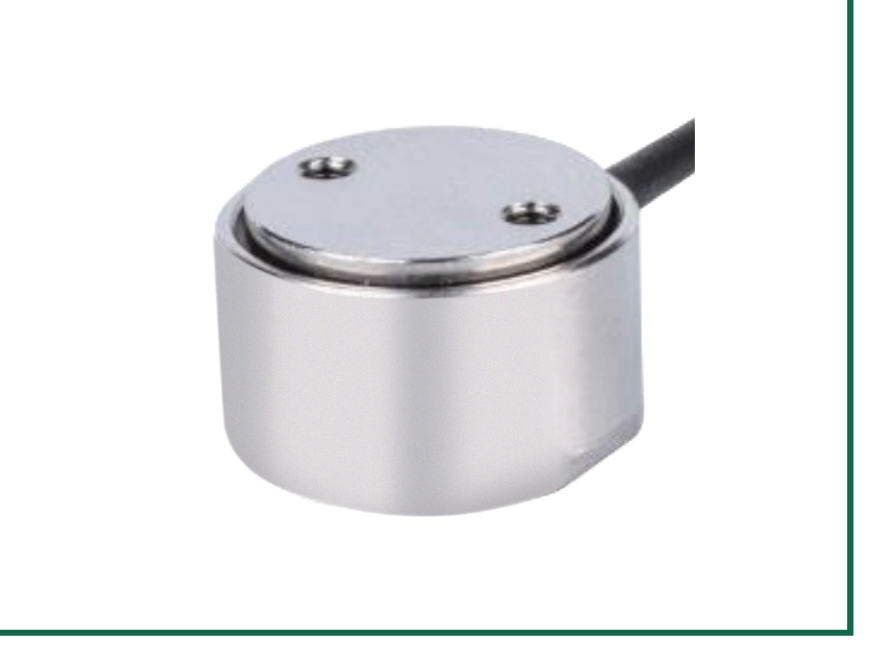

H401-03 Button Tension and Compression Load Cell

The Bonida H401-03 is a button tension and compression load cell for compact industrial force measurement and equipment integration. It uses a stainless-steel construction. Verified technical specifications (source catalog page 20): • Capacity: 1, 2, 5, 10, 20 kg • Rated output: 2.0 ±10 mV/V • Zero balance: ±0.02 mV/V • Creep: ≤0.1% F.S. • Non-linearity: ≤0.1% F.S. • Hysteresis: ≤0.1% F.S. • Repeatability: ≤0.1% F.S. • Input impedance: 650/350 ±5 Ω • Output impedance: 650/350 ±5 Ω • Temperature effect on sensitivity: 0.1% F.S./10°C • Temperature effect on zero: 0.1% F.S./10°C • Insulation resistance: ≥5000 MΩ/50 VDC • Recommended excitation: 5 V • Maximum excitation: 15 V • Compensated temperature range: -10 to 60°C • Operating temperature range: -20 to 80°C • Safe overload: 150% F.S. • Ultimate overload: 200% F.S. • Cable: Ø2 × 3000 mm • Material: Stainless steel Public pricing is not displayed. Please submit an RFQ to confirm the required capacity, quantity, integration details and lead time.
