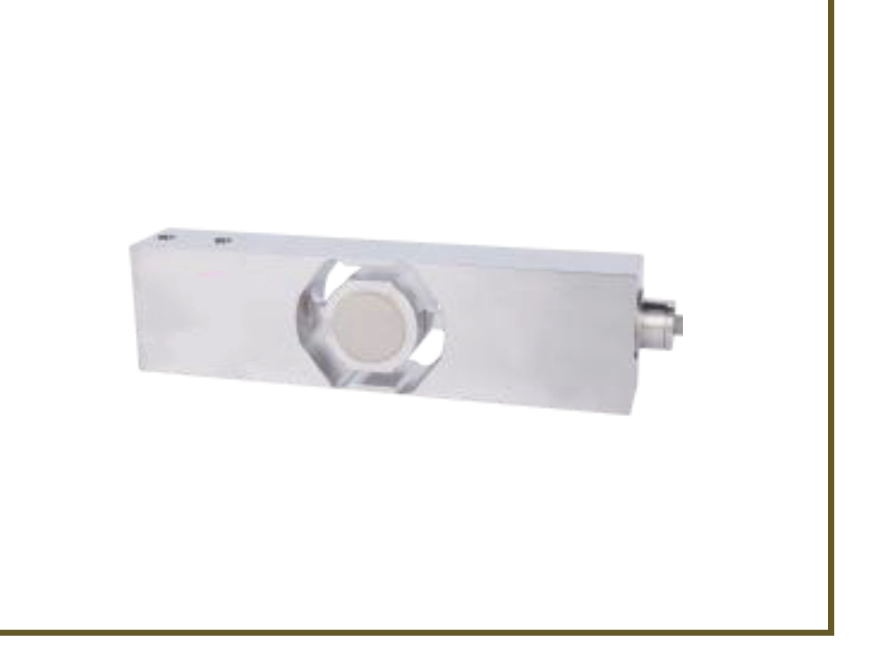

H501-07 Single-Point Weighing Load Cell

The Bonida H501-07 is a stainless-steel single-point weighing load cell for weighing platforms and equipment integration. Verified technical specifications (source catalog page 26): • Capacity: 10, 20, 50, 100 kg • Rated output: 2.0 ±10% mV/V • Zero balance: ±0.02 mV/V • Creep: 0.0166% F.S. • Non-linearity: 0.0166% F.S. • Hysteresis: 0.0166% F.S. • Repeatability: 0.0166% F.S. • Input impedance: 380 ±15 Ω • Output impedance: 350 ±10 Ω • Temperature effect on sensitivity: 0.0175% F.S./10°C • Temperature effect on zero: 0.0125% F.S./10°C • Insulation resistance: ≥5000 MΩ/100 VDC • Recommended excitation: 5 V • Maximum excitation: 12 V • Compensated temperature range: -10 to 40°C • Operating temperature range: -20 to 50°C • Safe overload: 150% F.S. • Ultimate overload: 200% F.S. • Cable: Ø5.4 mm × 3000 mm • Maximum scale size: 500 × 400 mm • Material: Stainless steel Public pricing is not displayed. Please submit an RFQ to confirm the required capacity, quantity, integration details and lead time.
