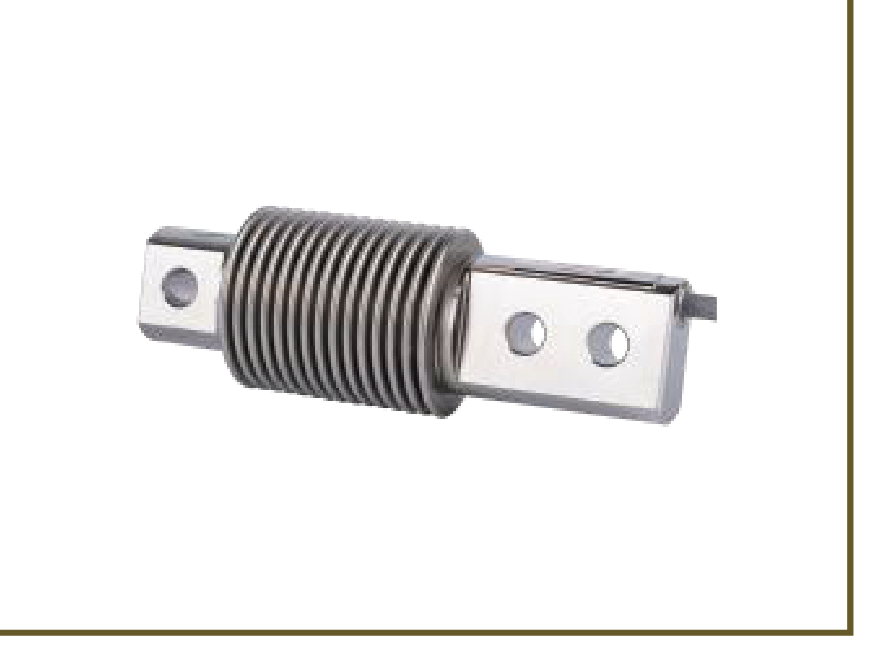

H501-08 Single-Point Weighing Load Cell

The Bonida H501-08 is a stainless-steel weighing load cell for industrial weighing systems and equipment integration. Verified technical specifications (source catalog page 27): • Capacity: 5, 10, 20, 50, 100, 200, 500 kg • Rated output: 2.0 ±0.2% mV/V • Zero balance: ±0.02 mV/V • Creep: 0.0166% F.S. • Non-linearity: 0.018% F.S. • Hysteresis: 0.017% F.S. • Repeatability: 0.018% F.S. • Input impedance: 400 ±10 Ω • Output impedance: 350 ±5 Ω • Temperature effect on sensitivity: 0.008% F.S./10°C • Temperature effect on zero: 0.0125% F.S./10°C • Insulation resistance: ≥5000 MΩ/100 VDC • Recommended excitation: 5–15 V • Maximum excitation: 20 V • Compensated temperature range: -10 to 40°C • Operating temperature range: -30 to 70°C • Safe overload: 150% F.S. • Ultimate overload: 200% F.S. • Cable: Ø5.4 mm × 3000 mm • Material: Stainless steel Public pricing is not displayed.
